What is the Function of the Roller Screen Machine?

Drum screening machine is a kind of machinery that is widely used in sorting technology. It controls the sorting of garbage by controlling the particle size and has high sorting accuracy. The sieve holes of the trommel are arranged from small to large, and the sieve hole diameter on each section is the same. In order to improve the sorting accuracy, and to avoid the situation that small particles are sieved out in the large-aperture sieve section, the garbage is fully turned over in the trommel, and the movement speed of the garbage cannot be too fast. Usually, a flexing plate is installed on the inner wall of the drum. The drum sieving machine for fertilizer function is to lift the garbage particles, so that the garbage particles of different particle diameters have the opportunity to contact the sieve holes as much as possible. Purpose of sorting. The drum section is connected to the drum screen turntable by nuts and screws, so the installation and disassembly of the drum section is more convenient. Since the drum section is connected to the turntable, when the turntable is rotated by the driving device, the drum section also rotates along with it.

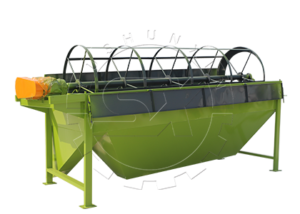

Rotary Drum Screening Machine — Rotary drum screener produced by FFM factory available for sieving the granules fertilizer or fertilizer materials.

The roller device is installed on the frame obliquely. The motor is connected with the roller device through a reducer through a coupling, and drives the roller device to rotate around its axis. When the material enters the drum screener device, due to the tilt and rotation of the drum device, the material on the screen surface is turned and rolled, so that the qualified materials (products under the screen) are discharged through the discharge port at the bottom of the rear end of the drum, and the unqualified materials (the screen The upper product) is discharged through the discharge port at the end of the drum. Due to the overturning and rolling of the material in the drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being blocked.

Here are detailed infromation about rotary type of screener.

https://fertilizerfactorymachine.com/rotary-drum-screener/

E-mail: info@fertilizerfactorymachine.com

TEL: +86 180 3757 2883

What is the Function of Pan Blending Equipment?

The disc mixing machine for fertilizer is mainly used for the blending of raw materials. It is composed of a mixing plate, a mixing arm, a discharge port, a frame, a gear box and a transmission mechanism. One end of the shaft connected to the cylinder cover passes through the cylinder, and the stirring shaft drives the cylinder cover to rotate. Thereby, driving the stirring shaft to rotate. The transmission mechanism that drives the rotation of the stirring arm is composed of a four-stage transmission. What’s more, the inner part of disc mixing is made of polypropylene or stainless steel, so it is not easy to stick to the material. For wear and tear, the cycloid pin wheel reducer has the characteristics of compact structure, convenient operation, uniform stumbling, and convenient unloading and conveying.

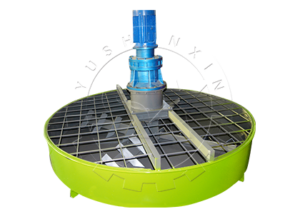

Pan Organic Fertilizer Mixing Equipment — Pan organic fertilizer mixer is a kind of mixing machine specially used for organic fertilizer.

What is the main performance of fertilizer mixing equipment?

The equipment is mainly stable in performance and relatively large in mixing volume, and the mixing effect is significantly better than other similar products. It can be connected to the production line to achieve continuous production equipment with low noise, simple maintenance and low maintenance cost. In the production of organic fertilizer, it is more adaptable for the first mixture. The longer the equipment, the better the mixing effect. The organic fertilizer horizontal mixer is a more general mixing equipment, which is widely recognized in many powder production industries.

How to make a durable fertilizer mixing machine?

Frame Part: All working bodies of the disk machine for blending are installed and fixed on the frame. The frame of the machine is welded with high-quality carbon steel plate and channel steel, and has passed strict product qualification certification and specific process requirements.

Transmission Connection Part: This machine adopts cycloid pinwheel reducer to drive the main shaft to rotate. The main working part adopts transmission connector phase gear and transmission drive nylon pin, which is convenient for assembly and maintenance.

Mixing Work Part: From the transmission wheel to the main shaft through the pin coupling. Turn the materials evenly in the mixing chamber, so that the materials can be fully mixed, thereby greatly reducing the residual amount of materials.

If you want to read more, you can visit here.

https://www.fertilizerfactorymachine.com/fertilizer-mixer-for-sale/

E-mail: info@fertilizerfactorymachine.com

TEL: +86 180 3757 2883

How to Make the Surface of Granules with Protective Film?

The fertilizer drum coating machine is composed of a stirring tank, an air compressor, a host, a conveyor and so on. The machine adopts a special liquid raw material or a spraying process combined with solid powder, which can form a protective film on the surface of the compound fertilizer particles to isolate it from the outside air. Consequently, effectively preventing the salt bridge effect and moisture absorption on the surface of the fertilizer. At the same time, the surface brightness of the particles is improved, and some trace elements can be appropriately added to improve the fertilizer efficiency. And it can prolong the effect of fertilizer in the soil, and can effectively improve the use effect of compound fertilizer.

When the finished granules flow uniformly into the coating machine and then continue to roll, first use compressed air and a special nozzle to spray the prepared oily mixed coating agent into a mist and apply it on the surface of the compound fertilizer particles. The surface of the compound fertilizer particles is coated with a uniform protective film, which effectively prevents salting out and moisture absorption on the surface of the fertilizer. This equipment is specially designed on the internal structure according to the coating process requirements, and it is an effective special equipment for preventing agglomeration of compound fertilizers.

Drum Coating Machine for Processing Fertilizer Granules — Drum coating machine is available for fertilizer production plants.

What are the Component of the Drum Coating Machine?

Bracket part: The whole rotating part of the machine body is supported by the bracket, which bears greater force. Therefore, the supporting wheel frame of this machine is welded with medium carbon steel plate and channel steel, and has passed strict quality control and special process requirements, which has achieved the purpose of this machine. In addition, the more important thing is the supporting roller fixed on the shelf. Considering that it will have greater friction with the machine body rolling belt, our factory deliberately selects anti-corrosion and wear-resistant materials, which greatly improves the service life of the machine. Casting integrated technology is also used. In addition, there are hoisting hooks at the four corners of the supporting roller frame, which is convenient for loading, unloading and transportation.
Transmission part: The transmission part of the whole coating equipment is particularly important, and the work of the whole body is carried out by this. The transmission frame is welded by channel steel and has passed strict quality requirements. The main motor and reducer installed on the transmission frame are all selected products with reliable quality. The motor drives the belt pulley, the V-belt, and the reducer to the main shaft to make the machine body work. The transmission reducer and the main shaft work part are driven by nylon pin couplings.
Big gear ring: This part fixed on the machine body, toothed with the transmission pinion gear, opposite to drive the machine body to work, it uses high-tech wear-resistant materials, so that the machine has a longer service life.
Rolling belt: Fixed on both sides of the machine body to support the whole coating equipment body.
Body part: The important part of the whole coating machine is the body part, which is welded by medium carbon steel plate, and has passed strict quality control and specific process requirements to achieve the purpose of the machine.

There are more information of coating machine, you can visit https://www.fertilizerfactorymachine.com/drum-coating-machine/

E-mail: info@fertilizerfactorymachine.com

Phone Number: +86 180 3757 2883

How to Deal with the Moisture Content of Granules after Granulation？

Rotary dryer is a large-scale machine used to dry shaped fertilizer granules, which is one of the essential equipment in the fertilizer industry. The rotary drum drying machine uses a fan installed in the rear of the machine to continuously draw the hot heat in hot blast stove at the nose to rear of the machine. With the continuous rotation of the machine body, the internal lifting plate continuously raises the formed particles. Throw it down, making the material fully contact with the hot air to take away the moisture in it, so as to achieve the purpose of uniform drying. The rotary drum drying has the advantages of reasonable structure, excellent production, high output, low energy consumption and convenient operation. The quality of our products is guaranteed, and the reputation is supreme for free installation and commissioning.

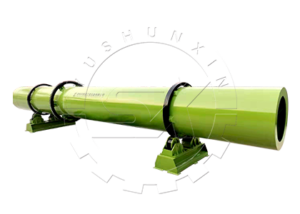

Rotary Drying Machine for Sale — Rotary dryer made by professional engineers from FFM factory.

Where can You the Rotary Dryer be Used?

Rotary dryers are widely used in building materials, metallurgy, chemical and cement industries to dry slag limestone, coal powder, slag, clay and other materials. The machine is mainly composed of rotating body, lifting plate, transmission device, supporting device and sealing ring. In the center of the rotary dryer, it is possible to avoid adding a dispersing mechanism. The wet material that enters the drying cylinder is repeatedly picked up and thrown off by the copy plate on the wall of the drum, and is broken into fine particles by the dispersing device during the falling process. ,The specific area is greatly increased, and it is fully contacted and dred with hot air. The drying efficiency is as high as 80%, which is significantly higher than similar domestic equipment.

How to Dry the Moisture Content of Granules?

The inside of the rotary dryer is welded with various copy plates with different angles in a staggered arrangement from the front to the back. According to the type of feed material, a squash ball with a diameter is added to the barrel to prevent highly viscous materials from sticking to the barrel wall. The machine is mainly composed of rotating body, lifting plate, transmission device, supporting device and sealing ring. The dryer is a cylinder that is slightly inclined to the horizontal direction. The material is added from the higher end, and the high-temperature hot flue gas flows into the cylinder concurrently with the material. As the cylinder rotates, the material moves to a lower level due to gravity. One end. A copy board is installed on the inner wall of the cylinder to pick up and sprinkle the material to increase the contact surface between the material and the airflow, so as to increase the drying rate and promote the advancement of the material. The dried product is collected from the lower part of the bottom end.

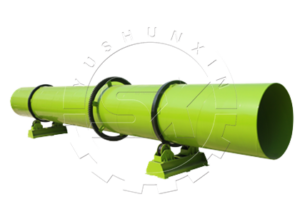

Granular Fertilizer Rotary Dryer for Sale — Rotary drying equipment with high drying efficiency.

9 Highlights Designs in the Construction of Rotary Drying Equipment

The rotary dryer has high thermal efficiency and obvious energy saving effect. After testing, the thermal efficiency greatly exceeds the level of the traditional single-cylinder dryer about. After the dryer is put into production, the coal-saving effect is obvious.
The drying mechanism is scientific and fair, and energy-saving. The material exchanges heat with the hot air flow in the inner cylinder in the form of radiation, convection and conduction, and the heat exchange in the outer cylinder is in the form of conduction and convection.
The length of the dryer is shortened, which is conducive to process layout. The length of the whole machine is about 40 shorter than that of the single-tube dryer, thereby reducing the building area of the plant, saving engineering investment, and being more suitable for the process layout of the old factory renovation.
The dryer equipment adopts the downstream drying process of materials and hot air flow, which has a wide range of combined use. It can be adapted to the drying of various raw materials such as clay, coal, slag, iron powder. And also suitable for the drying of various bulk materials in metallurgy and chemical industries.
The rotary dryer has a compact structure. The whole machine is arranged horizontally and adopts supporting wheels to support. The large and small gear transmission is eliminated, and the supporting wheel transmission is replaced, which makes the equipment installation more convenient, the operation simpler, the operation more reliable, and the operation rate higher.
A variety of lifting board designs, the angular lifting board and the 40 lifting board are organically combined to make the material and hot flue gas exchange more fully, reducing the mechanism of “wind tunnel” in the dryer cylinder.
Use frequency conversion speed regulation to adjust the rotation speed of the dryer barrel, and use an appropriate rotation speed according to the moisture content and output requirements to ensure the needs of the next process.
The external surface area of the rotary dryer is more than 30% less than that of the single-cylinder dryer, and the outer cylinder has the effect of heat preservation and heat insulation on the inner cylinder. The surface temperature of the outer cylinder is low, and the heat loss is small. Improved the working environment and working conditions.

If you have any interest of our rotary drying machine, you can click the follwing website. https://www.fertilizerfactorymachine.com/rotary-dryer-for-sale/

E-mail: info@fertilizerfactorymachine.com

Phone Number: 0086-180-3757-2883

Top Reasones of using manure bagging machine

At the point when you need to pack your compost in an advantageous and proficient manner, the fertilizer bagging machine is an insightful interest in your business. This machine has a programmed pressing framework that packs fertilizer quick so you can get serious. The machine is exceptionally precise and there are various machines to browse so you end up with the machine that is the best met for your requirements. Peruse on to become familiar with the manure pressing machine.

This machine arrives in an assortment of sizes and limits. It can even be altered for your business. This machine is usually utilized in the compost creation line and it gives the client a helpful and precise approach to sack the excrement.

The pressing scale permits you to pack a wide range of sorts of compost including powder and manure pellets(machines for manure pellets making). Pair the machine with a container so you can precisely gauge the fertilizer and you will likewise need to think about pressing it with a container. It will take care of the compost into the packs naturally once you set the machine up for use.

Granulatoring Process of Organic Fertilizer Production Line

Rotary Drum Churning Granulator Manure Pellet Making Machine

At the point when you are picking a stowing machine you need to decide how much compost you need to pack. The machines accompany one container or with different pails relying upon how much compost you plan on pressing. In the event that you will be pressing a great deal of excrement you need to consider putting resources into the twofold basin machine.

The double bucket machine permits you to pack a ton of compost quick since it has two pails. It additionally works persistently which implies you will run it nonstop and sack significantly more fertilizer. You increment your creation limit with this machine and it makes it such a huge amount of simpler to complete things. The machine permits you to deliver a great deal of work and you produce it quick.

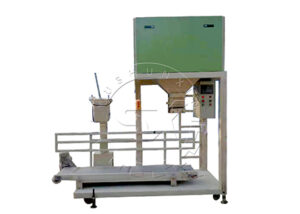

Double buckets fertilizer bagging machine

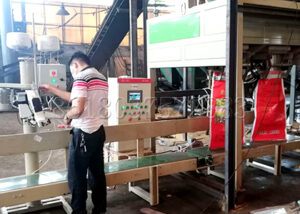

On the off chance that you have a huge scope fertilizer pressing activity the ton pressing machine is an extraordinary decision. It has an electronic gauging framework and it additionally does programmed sacking and residue evacuation. It is exceptionally precise and you can change the pressing pace so you get the outcomes you are searching for.

The machine is made with the best materials and it is made to last. You won’t have to invest a ton of energy keeping up it and it can run for quite a while without requiring any work. The machine is anything but difficult to utilize and it causes you deal with your requirements rapidly. At the point when you need a machine you can rely on you should pick the fertilizer stowing machine.

This machine is an incredible interest in your business and it causes you complete a ton of work quick. At the point when you need to sack a lot of excrement you can’t turn out badly with this machine. It will help your business be more profitable so you can set aside a great deal of cash. This machine is an incredible interest in your compost manure production business and will sack fertilizer quick.

New Type Vertical Crusher – strong adaptability and wide application.

Overview of new type vertical grinder.

Nowadays, this new type crusher is suitable for a wide range of raw materials, such as organic fertilizer, bio organic fertilizer, compound fertilizer and so on. In the grinding process, the high-strength wear-resistant cemented carbide chain, blade and vertical head with synchronous speed are adopted. The design of the feed inlet of the crusher is reasonable, the crushing material is uniform, and the raw material with large moisture content is not easy to stick to the wall, and the crusher cleaning is convenient The chain mill is suitable for crushing materials with moisture content of about 20% ~ 50%. It is the first choice for fermentation raw materials.

Advanced design of new type vertical crusher.

After technical improvement, the configuration and quantity of hammer pieces are improved, so that the crushing effect of materials is better, the angle setting of feeding port is improved, and the feeding port is no longer sticky.

The outlet setting is improved and the air outlet is increased. When the dust is large, the dust can be removed to reduce the dust pollution in the production workshop. The allowable moisture value of organic fertilizer material for biological fermentation by vertical chain mill can reach 25% – 50%, and the crushing particle size can meet the requirements of granulation.

The stiring of new type vertical grinder — The stiring parts of new type vertical grinder

The grinding degree can also be adjusted within a certain range according to the needs of users. It grinds hard materials such as glass, ceramics, bricks and gravel in the organic fertilizer of municipal solid waste and achieves the effect of safe use. This machine can shorten the technological process, reduce equipment investment and save operation cost for organic fertilizer and compost production. It is an ideal machine for fertilizer production and processing units.

The motor drives the main shaft to rotate. The main shaft has two bearing seats, which are installed at the upper and lower ends of the casing. The casing assembly is installed on the lower frame, the main shaft is equipped with a rotor disc and chain, and the feeding hopper is on the upper part of the casing. In order to facilitate the loading and unloading of the hammer head, a valve is opened on the casing to facilitate disassembly and repair.

New Type Organic Granular Fertilizer Production Line

Application of new type vertical grinder.

1. Composting. You can use this machine to deal with manure, biogas residue, household waste, etc. during composting.
2. Organic fertilizer granule production line. Before granulation, in order to avoid the influence of large particles on granulation, you can use this pulverizer to process raw materials.
3. Compound fertilizer granule production line. Similarly, in the compound fertilizer pellet production line, this crusher can help you process raw materials and return materials.
For more fertilizer equipment, you can refer to here.
